Slip Rings can be used in any system requiring the transmission of electrical power and signals from a fixed to an intermittently or continuously rotating system.
Thanks to their small ring diameter, the 300 Series, grants low surface speed between brushes and rings, as well as reduced dynamic imbalace providing very low generated heat and wear. Moreover, the use of noble metals (gold to gold alloy) assures long life, reduced noise or interference between circuits, and low friction torque.
The above features make the 300 Series specially suited to transmission of critical signals, such as hi frequency signals (video, fieldbus, etc), very low currents and voltages (strain gages, thermocouples, measuring equipment, etc).

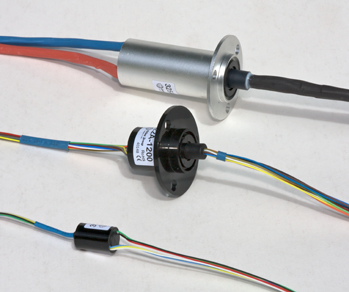

Conceived to deliver a flexible, cost-effective, reliable and hi-quality solution, these units are available in many standard configurations and with 6 to 56 circuits and 2, 6, or 10 Amp circuits. Their compact size allows installation into small systems.
The 300 Series can easily meet the needs of a wide range of applications and can also be customised on demand (connectors, cable length, special cables, circuits count, etc).
